High Speed Chemical Pump

High Speed Chemical Pump Specification

Mounting Type
Base mounted

Max Suction
7 meters

Caliber
25 mm

Features
Corrosion-resistant, leak-proof, compact, high efficiency

Head Size
Max 18 meters

Working Temperature
-10C to 85C

Flow Rate
60-120 L/min

Frequency
50/60 Hz

Voltage
220V / 380V AC

Control System
Manual / Automatic

Inlet/Outlet
25mm x 25mm

Discharge Pressure
2.5 Bar

Theory
Centrifugal Pump

Noise Level
<75 dB

Speed
2900 RPM

Material
Polypropylene (PP), Stainless Steel options

Structure
Horizontal

Power
1 HP / 0.75 kW

Standard
ISO 2858 / Manufacturer Standard

Fuel Type
Electric

Pressure
Max 2.5 Bar

Usage
Chemical transfer, industrial liquid handling

Application
Chemical industry, pharmaceutical, water treatment

Suction Type
Single Stage Suction

Seals Type
Mechanical Seal

Priming
Self-priming

Pump Type
High Speed Chemical Pump

Capacity
Up to 7.2 m/h

Shaft Material
Stainless Steel 304/316

Ambient Temperature
Up to 45°C

Weight
Approx. 18 kg

Maximum Viscosity
Up to 300 cP

Protection Class
IP55

Seal Material
Viton / PTFE / Carbon / Ceramic

Cable Length
1.5 meters standard

Impeller Material
Glass-filled Polypropylene or Stainless Steel

Service Life
Long with proper maintenance

Direction of Rotation
Clockwise as seen from coupling end

Replacement Parts Availability
Yes

Maximum Particle Size
Up to 3 mm

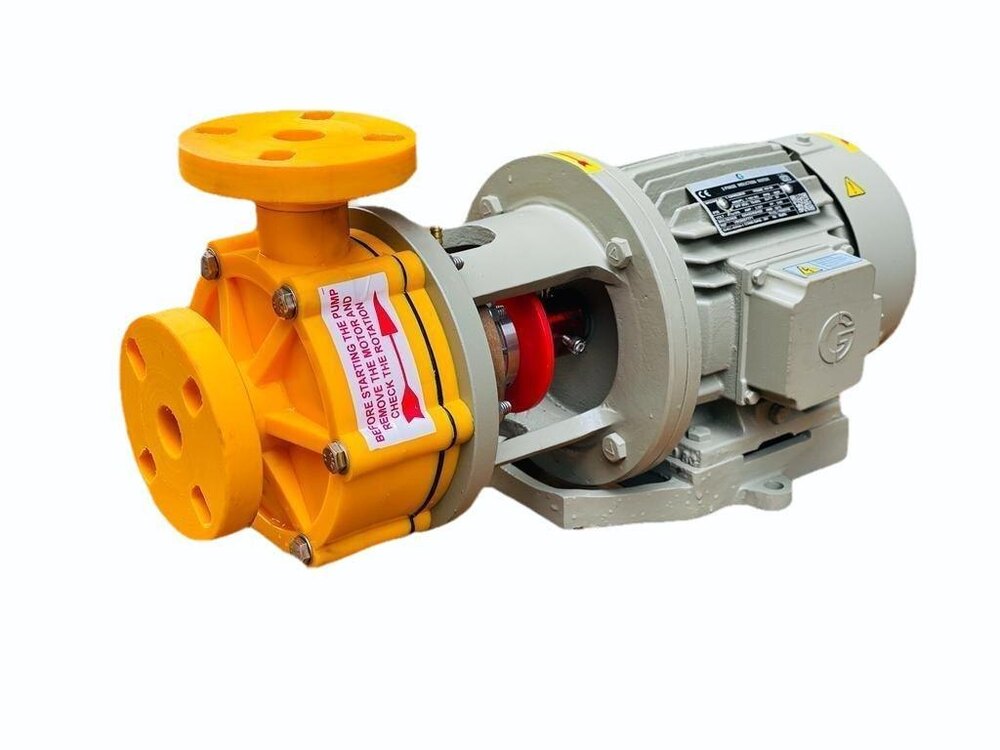

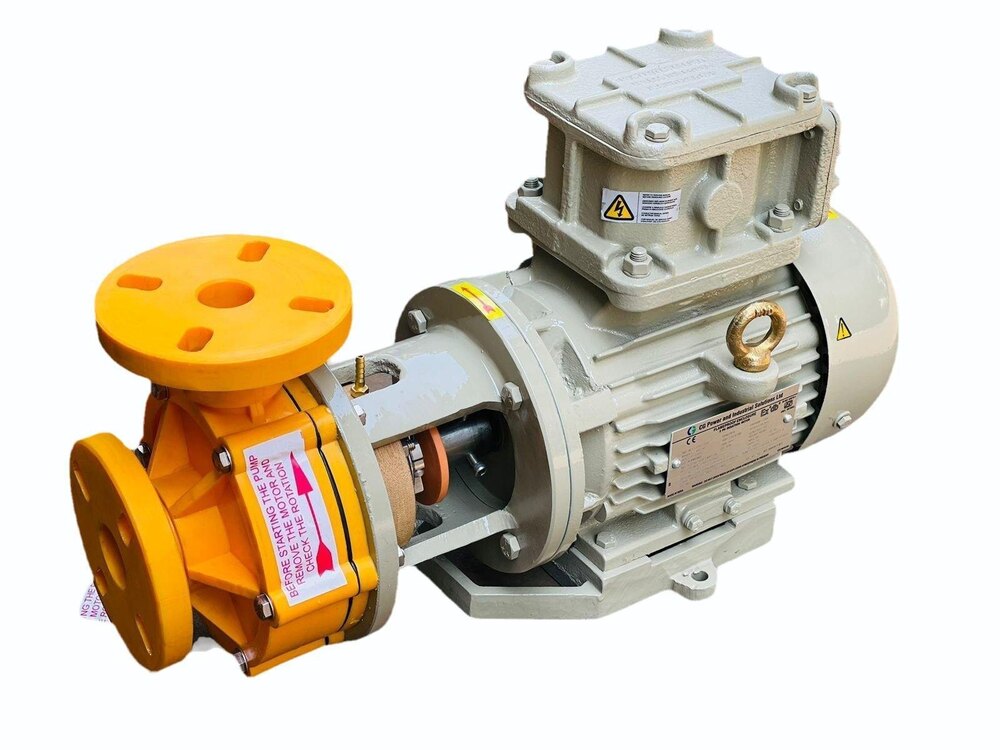

About High Speed Chemical Pump

We are leading manufacturer of Centrifugal polypropylene Pumps known as PPC series.The extremely strong and durable Corrosion Resistant Polypropylene centrifugal pumps can handle highly corrosive liquids, like acid, chemical substances, and solvents. Endowed with a rugged design, the machine can be used for intermittent intervals, as well as continuous flow of fluid applications.

Robust Construction for Diverse Applications

Crafted with high-quality materials such as glass-filled polypropylene and stainless steel, this pump delivers exceptional resistance to corrosion, making it suitable for the chemical, pharmaceutical, and water treatment industries. The mechanical seal options ensure leak-proof performance under demanding operational conditions.

High Performance and Energy Efficiency

With a 1 HP (0.75 kW) motor and speeds up to 2900 RPM, the pump achieves flow rates of up to 120 L/min and can handle heads up to 18 meters. Its efficient centrifugal design conserves energy while offering consistent output and reliable handling of viscosities up to 300 cP.

Ease of Use and Maintenance

The pump is available with manual and automatic controls, making it adaptable for varied system requirements. Routine maintenance ensures a long service life, while replacement parts are readily available for minimal downtime. The IP55 protection, robust build, and straightforward mounting streamline installation and operation.

FAQ's of High Speed Chemical Pump:

Q: How is the High Speed Chemical Pump installed and what mounting options does it offer?

A: The pump is base mounted, which simplifies installation in horizontal orientations. Clear coupling directions and standard cable lengths make setup straightforward. Ensure the unit is securely bolted to a stable platform in environments up to 45C ambient temperature.

Q: What types of chemicals and liquids can this pump handle safely?

A: Designed for chemical transfer and industrial liquid handling, the pump's corrosion-resistant materials (polypropylene, stainless steels 304/316) and various seal types (Viton, PTFE, Carbon, Ceramic) make it compatible with a wide range of acids, alkalis, and industrial fluids up to 300 cP viscosity and 3 mm particle size.

Q: When should the seals or replacement parts be changed?

A: Seals and other wear parts should be inspected regularly during scheduled maintenance. With proper upkeep, service life is long, but replacements are recommended at signs of leakage, performance drops, or as advised by the manufacturer's maintenance intervals. Genuine spare parts are available for all pump components.

Q: Where can this pump be effectively used?

A: The pump is ideal for chemical processing plants, pharmaceutical manufacturing, water treatment facilities, and other industrial environments requiring robust and leak-proof fluid transfer solutions. Its compact structure and self-priming capability further broaden its application scope.

Q: What are the main benefits of using this chemical pump compared to others?

A: Key benefits include superior corrosion resistance, self-priming capability, leak-proof operation due to high-quality mechanical seals, a compact horizontal structure, and compliance with ISO 2858 standards. Additionally, it runs efficiently at low noise levels (<75 dB), ensuring a safer and more comfortable workplace.

Q: How is the pump controlled and does it support automation?

A: The pump can be operated manually or integrated into automatic control systems for improved process efficiency and safety. Options for voltage (220V/380V) and frequency (50/60 Hz) further enhance adaptability to diverse operational requirements.

Q: What is the maximum suction, pressure, and flow capability of this pump?

A: The pump offers a maximum suction lift of 7 meters, a maximum discharge pressure of 2.5 Bar, and flow rates up to 120 L/min, with the capacity to handle up to 7.2 m3/h, supporting both high-volume and demanding industrial fluid transfer applications.
