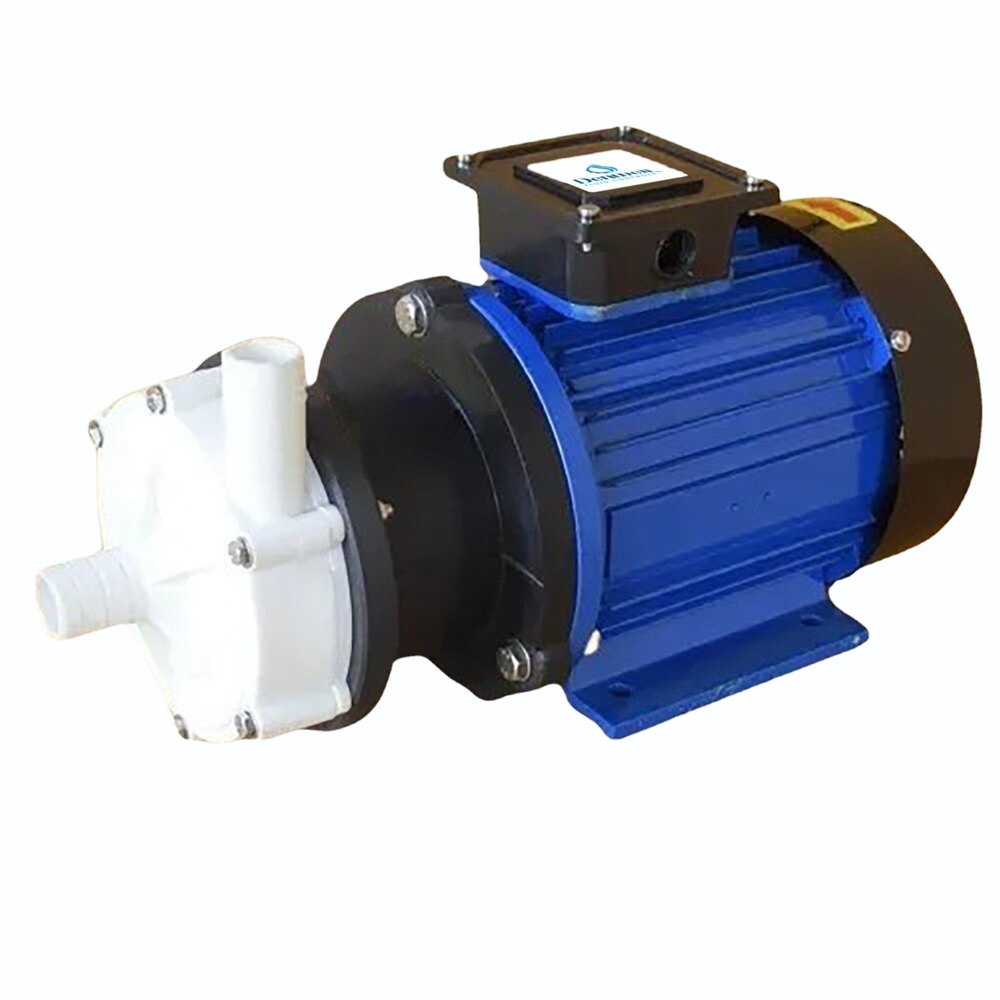

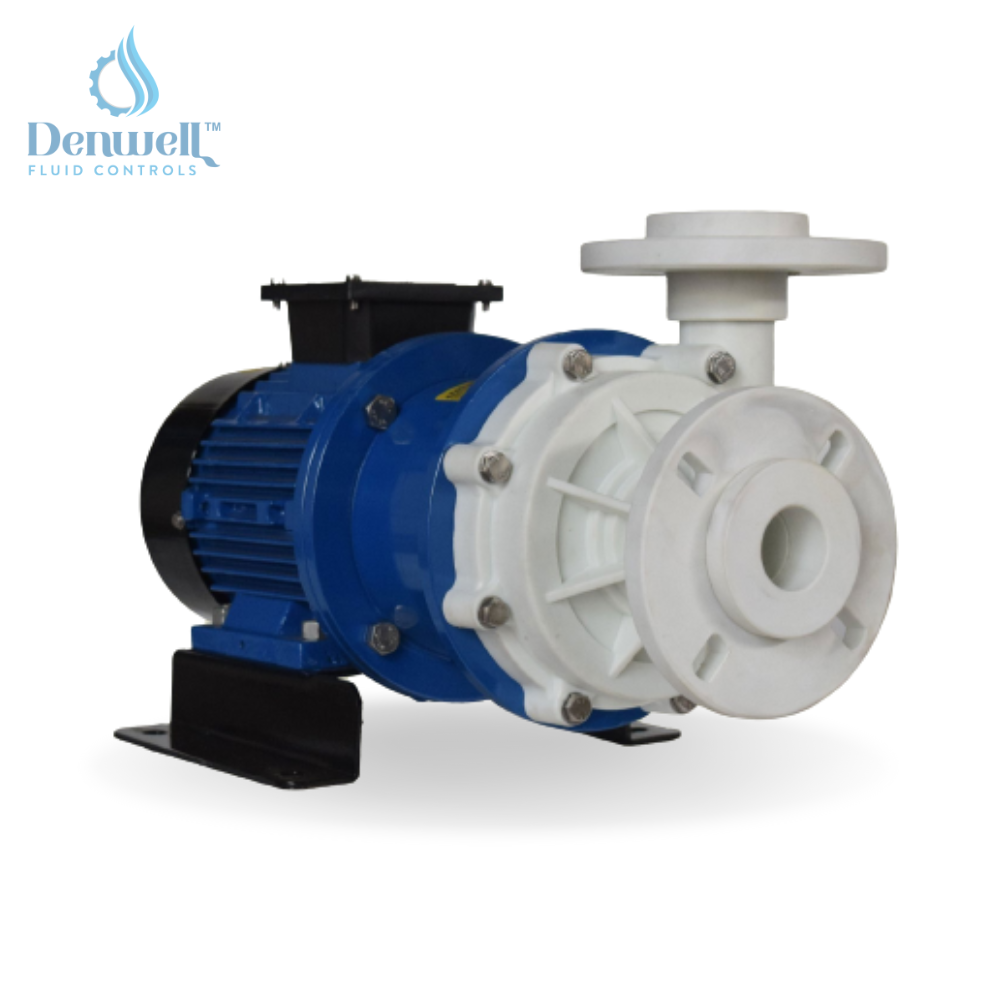

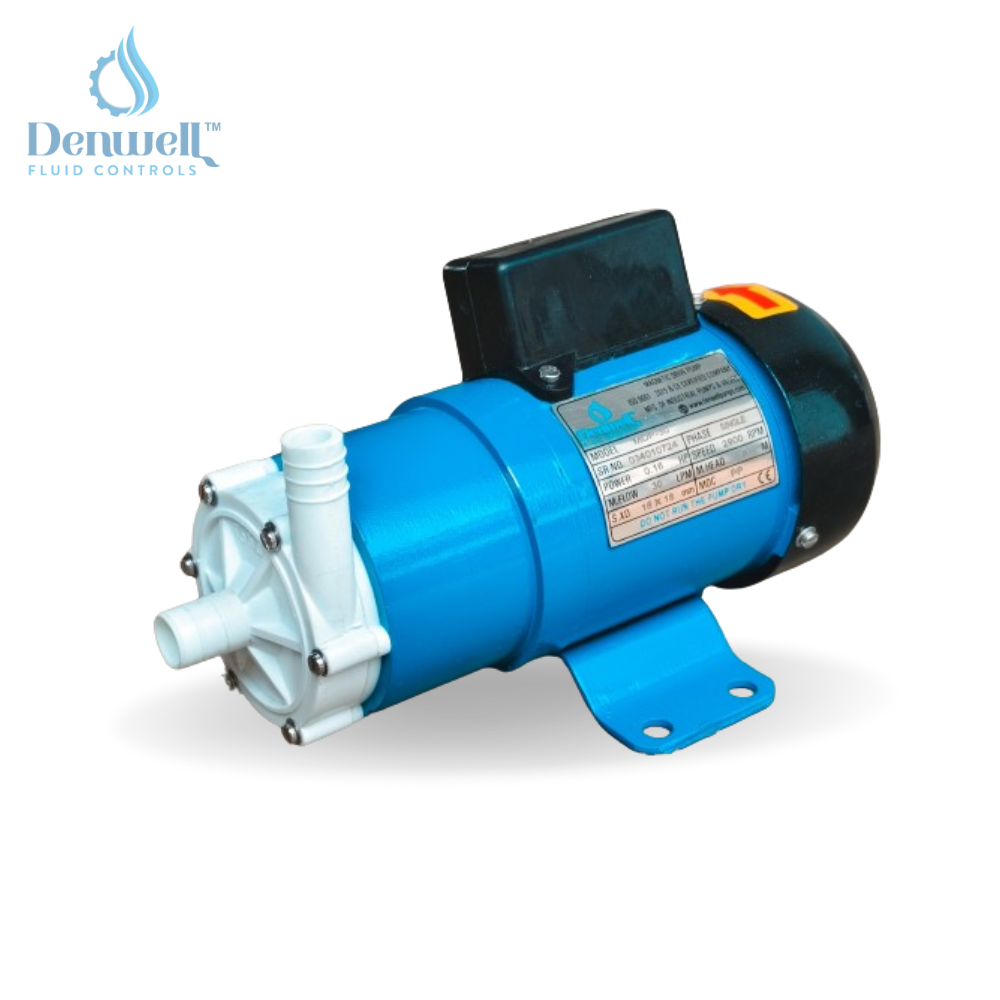

Magnetic Drive Pump

Magnetic Drive Pump Specification

Speed
2900 RPM

Control System
Manual / DOL Starter

Inlet/Outlet
25 mm x 25 mm

Noise Level
Low

Mounting Type
Base Mounted

Max Suction
Up to 3 Meter

Flow Rate
35 LPM

Voltage
230V / 415V

Theory
Centrifugal Pump

Discharge Pressure
Up to 1.5 Bar

Head Size
Up to 18 Meter

Caliber
25 mm

Working Temperature
Up to 120°C

Features
Corrosion Resistant, Leak-proof, Maintenance Free

Frequency
50/60 Hz

Material
PP, PVDF, SS316

Structure
Horizontal Single-stage

Power
0.5 HP to 3 HP

Standard
ISO 2858 / DIN

Fuel Type
Electric

Pressure
Up to 1.5 kg/cm²

Usage
Industrial/ Chemical / Pharmaceutical

Application
Chemical Handling / Acid Transfer

Suction Type
Flooded Suction / Positive Suction

Seals Type
Magnetic Seal (Seal-less)

Priming
Self-Priming Optional

Pump Type
Magnetic Drive Pump

Capacity
Up to 6 m³/hr

Drive Type
Direct Coupled

Impeller Type
Enclosed

Protection Class
IP55

Max Solid Passage
Not Suitable for Slurry

Motor Type
TEFC (Totally Enclosed Fan Cooled)

Ambient Temperature
Up to 45°C

Shaft Material
SS 316/ Ceramic Coated

Installation
Horizontal

About Magnetic Drive Pump

Application: These pumps are 100% Leak Proof and ideally suitable for handling corrosive chemicals, toxic and fuming liquids, acids, electroplating chemicals, dyes, solvents, petrol, kerosene, pharmaceutical and food syrups etc.

Advanced Magnetic Drive Technology

This pump uses a seal-less magnetic drive system, eliminating leakage risks typical of traditional pumps. Its enclosed impeller ensures reliable, efficient fluid movement, while ISO 2858/DIN-standard compliance guarantees superior safety and performance for demanding industrial processes.

Versatile Material Options for Corrosion Resistance

Constructed from PP, PVDF, or SS316, the pump can be customized for different chemical handling requirements. These materials provide outstanding corrosion resistance, making the pump suitable for the safe transfer of acids and aggressive chemicals in pharmaceutical or chemical industries.

Low Maintenance and Easy Installation

Designed for horizontal base mounting and direct coupling, this magnetic drive pump simplifies installation and maintenance. Its TEFC motor and ceramic-coated shaft contribute to a robust, maintenance-free operation, allowing it to run efficiently with minimal user intervention.

FAQ's of Magnetic Drive Pump:

Q: How does the magnetic drive pump prevent leaks during chemical handling?

A: The seal-less magnetic drive mechanism utilizes magnetic coupling rather than conventional shaft seals. This feature eliminates common points of leakage, providing a leak-proof solution for chemical transfer and acid handling applications.

Q: What materials are available for the pump, and how do they benefit specific uses?

A: Options include PP, PVDF, and SS316. Each offers specialized corrosion resistance, making the pump suitable for transferring corrosive chemicals in industrial, pharmaceutical, or chemical processing sectors.

Q: When is self-priming recommended for this pump?

A: Self-priming is optional and recommended for installations where the pump cannot be flooded. It helps initiate fluid flow automatically, thus simplifying startup procedures in varied operational conditions.

Q: Where should the pump be installed for optimal performance?

A: The pump is designed for horizontal, base-mounted installation. This enhances stability and ensures efficient flooded or positive suction operation, particularly in industrial settings requiring consistent, reliable chemical transfer.

Q: What is the maintenance process for this magnetic drive pump?

A: Routine maintenance is minimal due to the magnetic seal and TEFC motor. Users should periodically check for any blockages and ensure connections remain secure, but no regular seal or shaft replacement is needed.

Q: How is the pump controlled and what are its operational frequency options?

A: Operation is managed manually or via a DOL starter. The pump supports both 50 Hz and 60 Hz power supplies, accommodating different industrial electrical standards across regions.

Q: What advantages does this pump offer over traditional centrifugal pumps?

A: With its leak-proof, corrosion-resistant, and maintenance-free design, the magnetic drive pump provides safer and more reliable chemical handling. Its advanced features reduce downtime and long-term operational costs.
