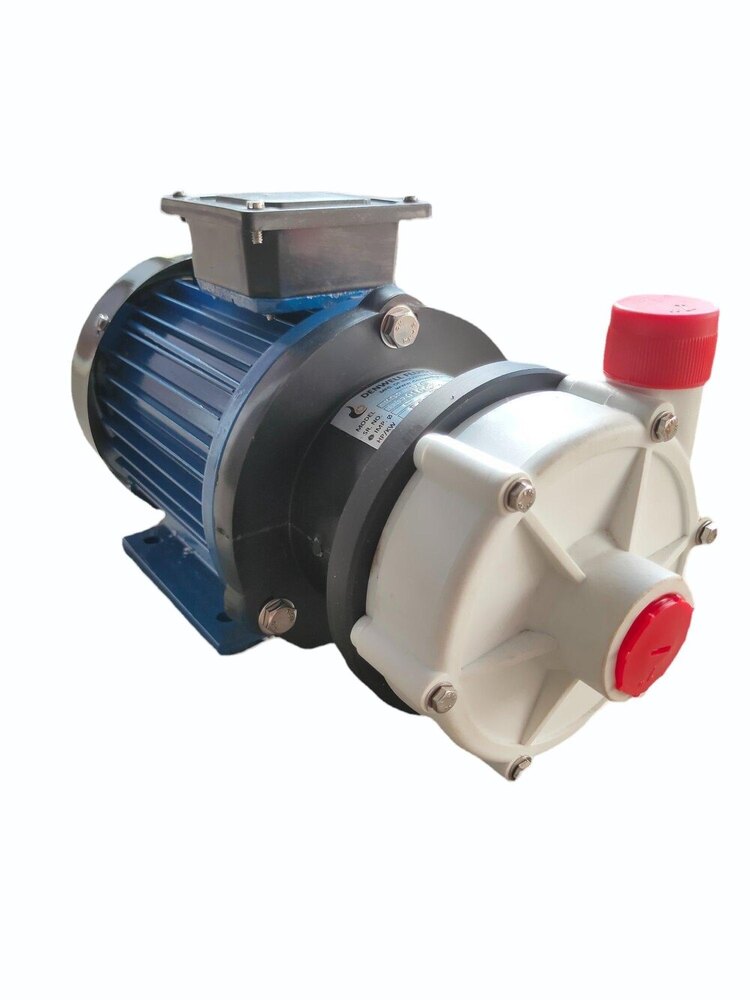

MDP 125 PP Seal-less Magnetic Drive Pumps

MDP 125 PP Seal-less Magnetic Drive Pumps Specification

Max Suction
3 meters

Control System
Manual / DOL Starter

Features
Leak-proof design, Maintenance-free, High corrosion resistance

Caliber
25 mm

Inlet/Outlet
1 inch x 1 inch

Noise Level
Low (below 70 dB)

Theory
Centrifugal Pump

Head Size
12 meters

Frequency
50 Hz

Working Temperature
Up to 80C

Speed
2900 RPM

Voltage
220V/380V

Discharge Pressure
1.2 bar

Flow Rate
6 m/hr

Mounting Type
Horizontal

Material
Polypropylene (PP)

Structure
Single-stage

Power
0.75 HP (0.55 kW)

Standard
ISO 9001 Certified

Fuel Type
Electric

Pressure
Up to 1.2 bar

Usage
Chemical Transfer

Application
Acid, Alkali, Corrosive Chemical Handling

Suction Type
Flooded Suction

Seals Type
Seal-less Magnetic Drive

Priming
Self-priming not required; non-self-priming

Pump Type
Magnetic Drive Pump

Capacity
6 m/hr

Protection Class
IP55

Shaft Material
SS 316

Connection Type
Threaded/Flanged (optional)

Service
Continuous Duty

Color
Blue/White

Installation Position
Baseplate Mounted

Impeller Type
Closed Impeller

Maximum Solid Passage
No solids; only clean liquids

Weight
Approx. 12 kg

Spare Parts Availability
Yes

Bearing Material
Ceramic/Carbon

Cooling Method
TEFC (Totally Enclosed Fan Cooled) Motor

About MDP 125 PP Seal-less Magnetic Drive Pumps

Denwell seal-less magnetic drive centrifugal pump operates by connecting anexternal magnet directly to the motor shaft, which then conveys torque toan internal magnet. This setup generates a magnetic field that allows theimpeller to rotate and move the fluid without any physical contactbetween the moving parts. The rear casing, situated between the two magnetic assemblies, hermetically seals the hydraulic section from themotor, ensuring no fluid leakage.

High-Efficiency, Low-Maintenance Operation

The MDP 125 PP Magnetic Drive Pump's seal-less, leak-proof design minimizes maintenance needs and eliminates the risk of chemical leakage. Supported by a robust polypropylene casing and advanced ceramic/carbon bearings, it operates efficiently for extended periods, making it ideal for continuous-duty chemical transfer applications.

Corrosion-Resistant Construction for Demanding Applications

With its SS 316 shaft and polypropylene body, the MDP 125 PP pump is specially engineered to withstand harsh chemicals and corrosive fluids. Its closed impeller further enhances efficiency and durability, making it suitable for industrial handling of acids, alkalis, and other aggressive substances.

Versatile Installation and Reliable Performance

Baseplate mounting, threaded or flanged connections, and compatibility with 220V/380V power allow flexible integration into a range of systems. Low noise, continuous-duty capability, and ISO 9001 certification ensure dependable performance in dealer, distributor, exporter, manufacturer, supplier, trader, or wholesaler environments across India.

FAQ's of MDP 125 PP Seal-less Magnetic Drive Pumps:

Q: How does the MDP 125 PP Magnetic Drive Pump prevent leaks during chemical transfer?

A: The MDP 125 PP uses a seal-less magnetic drive system, eliminating the need for traditional shaft seals and thus preventing leakage of hazardous or corrosive fluids. This design makes it particularly suitable for handling chemicals safely.

Q: What types of liquids can the MDP 125 PP pump handle?

A: This pump is designed exclusively for clean liquids with no solid content. Common applications include transferring acids, alkalis, and other corrosive chemicals in industrial settings.

Q: Where can the MDP 125 PP pump be installed, and what is the recommended mounting position?

A: The pump is intended for horizontal, baseplate-mounted installation. It is adaptable to various industrial setups, provided it is installed using either threaded or flanged connections as needed.

Q: What is the process for operating the MDP 125 PP pump, and does it require any special priming?

A: Operation is straightforward-connect the pump to a manual or DOL starter control system. It does not require self-priming; instead, a flooded suction arrangement must be used to ensure proper function.

Q: When should spare parts be replaced, and are they readily available in India?

A: Routine maintenance is minimal due to its maintenance-free design, but should any part require replacement, spare parts for the MDP 125 PP are readily available through dealers, distributors, and suppliers across India.

Q: What are the main benefits of using the MDP 125 PP in continuous-duty chemical transfer operations?

A: Key benefits include leak-proof and maintenance-free operation, high resistance to corrosion, low operational noise (below 70 dB), and ISO 9001 certified reliability, making it a dependable choice for demanding chemical handling tasks.
