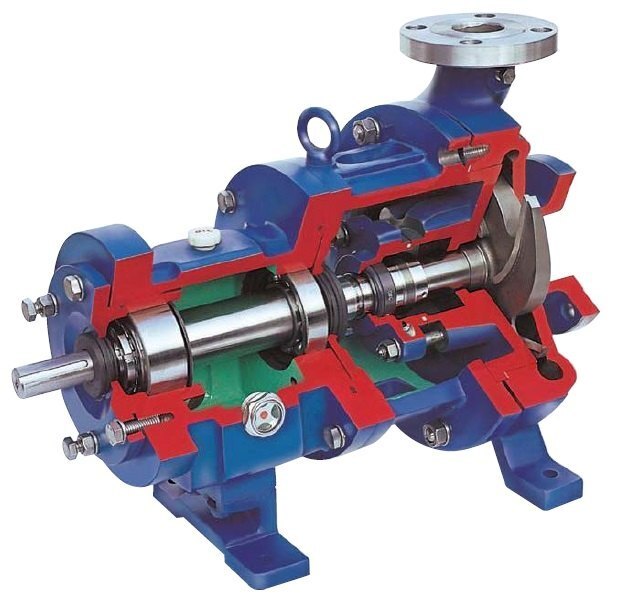

Industrial Centrifugal Pumps

Industrial Centrifugal Pumps Specification

Flow Rate
Up to 350 m/hr

Theory
Centrifugal Pump

Material
Cast Iron / Stainless Steel

Structure
Single Stage

Suction Type
Single Suction

Volute Type
Single Volute

Nozzle Location
End Suction, Top Discharge

Shaft Orientation
Horizontal

Power Source
Electric

Fuel System
Electrical

Pressure
Medium Pressure

Temperature
Up to 80C

Inlet, Outlet Diameter
50 mm, 40 mm

Speed
1450/2900 RPM

Application
Industries, Water Treatment, Chemical Transfer, Irrigation

Operating Voltage
415V AC

Protection Class
IP 55

Bearing Type
Heavy Duty Ball Bearing

Max Head
60 m

Impeller Type
Closed

Connection Standard
ANSI/DIN Flanges

Seal Type
Mechanical Seal / Gland Packing

Mounting Type
Base Mounted

Color
Blue / Custom

Compliance
ISO 9001 Certified

Cooling Method
Air Cooled

Motor Phase
Three Phase

About Industrial Centrifugal Pumps

Application: Heat transfer systems Thermal oil circulation Hot oil heaters Chemical & Petrochemical industries Food processing Plastic & rubber plants Pharmaceutical industries Textile & Synthetic Fibber Industries

Advanced Engineering for Industrial Demands

Designed with a single-stage, single-volute structure, these centrifugal pumps support a wide range of industrial processes, from water treatment to chemical transfer. Their horizontal shaft orientation and end suction with top discharge make them suitable for efficient installation and steady performance in rigorous settings.

Flexible Customization and Reliable Compliance

Available in both blue and custom colors, our pumps can be tailored to fit your operational branding. The pumps meet stringent ISO 9001 standards, assuring consistent quality and safety. With multiple mounting, sealing, and material options, they address diverse industrial requirements across India and global markets.

FAQ's of Industrial Centrifugal Pumps:

Q: How do I select the right centrifugal pump for my industrial application?

A: Select a pump based on required flow rate (up to 350 m3/hr), maximum head (up to 60 m), compatibility with your fluids, and the application's pressure and temperature needs (up to 80C). Consider material choices (cast iron or stainless steel), mounting, and seal type to match your operational environment.

Q: What are the main benefits of using base mounted, closed impeller pumps with mechanical seals?

A: Base mounted, closed impeller pumps deliver stability, compact design, and enhanced hydraulic efficiency. Mechanical seals or gland packing reduce leakage and maintenance needs, supporting continuous, reliable performance in demanding industrial and chemical processes.

Q: When should I carry out routine maintenance on these industrial pumps?

A: Routine maintenance is recommended on a scheduled basis-typically every three to six months-depending on operational conditions, fluid types, and system workload. Regular checks help prolong motor life and ensure optimum pump efficiency and reliability.

Q: Where can these centrifugal pumps be installed and who supplies them in India?

A: These pumps are suitable for a variety of installation sites-including water treatment plants, chemical processing facilities, and irrigation systems. They are available across India through authorized dealers, distributors, manufacturers, suppliers, and exporters.

Q: What is the installation process for base mounted end suction pumps?

A: The installation involves positioning the unit on a solid foundation, connecting the suction and discharge nozzles (ANSI/DIN flanges), aligning the shaft horizontally, and wiring the three-phase motor to a 415V AC supply. Proper alignment and anchoring are essential for smooth operation and longevity.

Q: How does the single volute, single suction design affect pump performance?

A: A single volute, single suction configuration provides efficient hydraulic performance for moderate flows and pressures, reducing radial loads on the bearings and extending pump life under balanced, steady-state operating conditions.
