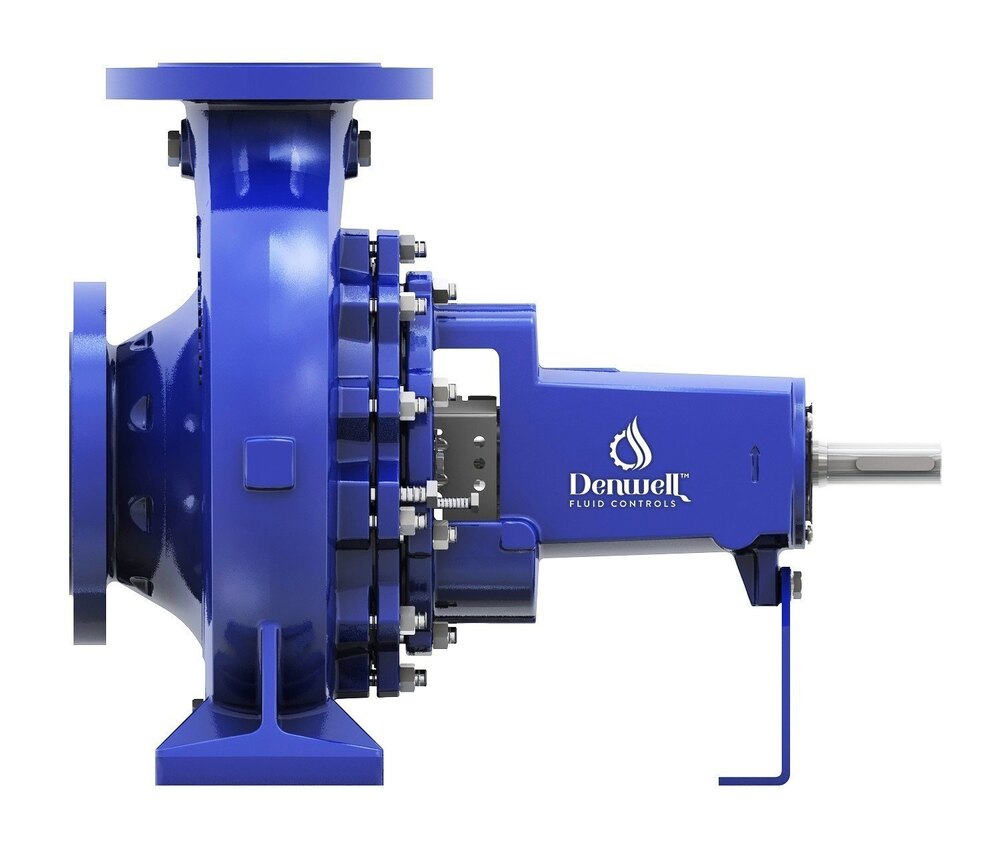

Back Pull Out Centrifugal Pumps Specification

Flow Rate
Up to 1800 m³/hr

Theory
Centrifugal Pump

Material
Cast Iron, Stainless Steel

Structure
Back Pull Out Design

Suction Type
End Suction

Volute Type
Single Volute

Nozzle Location
Top Centerline Discharge, Suction at Side

Shaft Orientation
Horizontal

Power Source
Electric Motor

Pressure
Up to 16 bar

Temperature
Up to 140°C

Inlet, Outlet Diameter
From 32 mm to 200 mm

Speed
1450 & 2900 RPM

Application
Water Supply, Air Conditioning, Fire Fighting, Circulation, HVAC, Chemical Process, Irrigation

Coupling Type
Flexible Coupling

Finish
Corrosion Resistant Paint

Pump Casing Pressure Testing
Up to 24 bar

Maximum Solid Passage
Up to 20 mm

Impeller Type
Closed Impeller

Bearing Type
Heavy Duty, Grease Lubricated

Mounting
Foot Mounted

Suitable Liquids
Clear and Slightly Contaminated Liquids

Drive
Direct Coupled

Installation Position
Horizontal

Noise Level
Less than 70 dB

Sealing
Gland Packing / Mechanical Seal

About Back Pull Out Centrifugal Pumps

Procure this extraordinary range of Back Pull Out Centrifugal Pumps and take advantage of their noteworthy design for heavy-duty industrial performance. With a gorgeous corrosion-resistant finish and robust structure, these virtuoso pumps are fitted with closed impellers and heavy-duty bearings, ensuring superior durability and efficiency. Select options like gland packing or mechanical seal for optimal sealing. Ideal for water supply, HVAC, fire fighting, irrigation, and chemical processes, they effortlessly handle clear or slightly contaminated liquids. With flexible coupling, quiet operation, high flow rates, and operational reliability up to 140C, these pumps set the standard in centrifugal pump technology across India for dealers, exporters, suppliers, and traders.

Versatile Application and Reliable Performance

Back Pull Out Centrifugal Pumps are used for water supply, air conditioning, fire fighting, circulation, HVAC, chemical processing, and irrigation. Their site of application spans both industrial and commercial environments, offering specific use in scenarios demanding efficient liquid handling and circulation. Generally employed for moving clear or slightly contaminated liquids, these pumps fulfil various roles where trustworthy performance and streamlined operation are paramount.

Sample, Packaging, and Delivery Excellence

A premium sample of our Back Pull Out Centrifugal Pumps is available for assessment before purchase. FOB port options simplify goods transport, ensuring a seamless sales process. Each pump is delivered in premium-grade, secure packaging to safeguard them during transit and guarantee quality upon arrival. With competitively set sale prices and trustworthy delivery, buyers benefit from confidence and convenience when sourcing pumps from our network throughout India.

FAQ's of Back Pull Out Centrifugal Pumps:

Q: How do Back Pull Out Centrifugal Pumps simplify maintenance and servicing processes?

A: The back pull-out design allows for easy removal of the pump assembly without disconnecting the piping, making maintenance and servicing straightforward and time-saving.

Q: What types of liquids can these pumps handle efficiently?

A: These pumps are suitable for clear and slightly contaminated liquids, ensuring efficient handling in water supply, HVAC, chemical processes, and irrigation applications.

Q: Where can Back Pull Out Centrifugal Pumps be installed?

A: They are ideal for use in industrial, commercial, and municipal settings, including water treatment plants, factories, irrigation systems, and building HVAC units.

Q: What are the benefits of the heavy-duty bearings and corrosion-resistant paint?

A: Heavy-duty bearings provide longevity and smooth operation, while the corrosion-resistant paint enhances durability, even in challenging operating environments.

Q: When should gland packing or mechanical seals be selected?

A: Gland packing is typically chosen for basic applications, while mechanical seals are preferred in scenarios requiring higher leakage control and reduced maintenance.

Q: How does the flexible coupling benefit pump usage?

A: Flexible coupling absorbs vibration and misalignment between pump and motor, protecting the equipment and ensuring quiet, stable operation under varying loads.
