Ss Magnetic Drive Pump

Ss Magnetic Drive Pump Specification

Voltage
220V / 380V AC

Mounting Type
Baseplate Mounted

Control System
Manual / Optional Automatic

Inlet/Outlet
25mm x 25mm

Theory
Centrifugal Pump

Features
Leak-free operation, Low maintenance, Corrosion-resistant

Working Temperature
-20C to 100C

Max Suction
6 m

Speed
2800 RPM

Discharge Pressure
1.5 kg/cm2

Head Size
Up to 15 m

Caliber
25 mm

Flow Rate
Up to 6 m3/hr

Frequency
50 Hz / 60 Hz

Noise Level
<70dB

Material
Stainless Steel (SS 304 / SS 316)

Structure
Single-Stage Magnetic Drive Pump

Power
0.18 kW to 2.2 kW

Standard
ISO 2858

Fuel Type
Electric

Pressure
1.5 kg/cm2

Usage
Chemical, Pharmaceutical, Petrochemical, Water Treatment

Application
Corrosive Liquid Transfer

Suction Type
Flooded Suction / Negative Suction

Seals Type
Seal-less (Magnetic Coupling)

Priming
Self-priming not available

Pump Type
Magnetic Drive Centrifugal Pump

Capacity
Up to 6 m3/hr

Drive
Close Coupled

Compliance
CE Marked

Cooling Method
Air-cooled Motor

Viscosity Handling
Up to 200 cP

Direction of Rotation
Clockwise (as seen from motor end)

Design Pressure
16 bar

Insulation Class
F

Max Fluid Density
1.8 g/cm3

Connection Type
Threaded / Flanged

Bearings
Heavy Duty, Maintenance Free

Weight
20 - 50 kg (depending on model)

Protection Class
IP55

Max Particle Size
Non-Handling (Clear Liquids Only)

Impeller Type
Enclosed

Ss Magnetic Drive Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Ss Magnetic Drive Pump

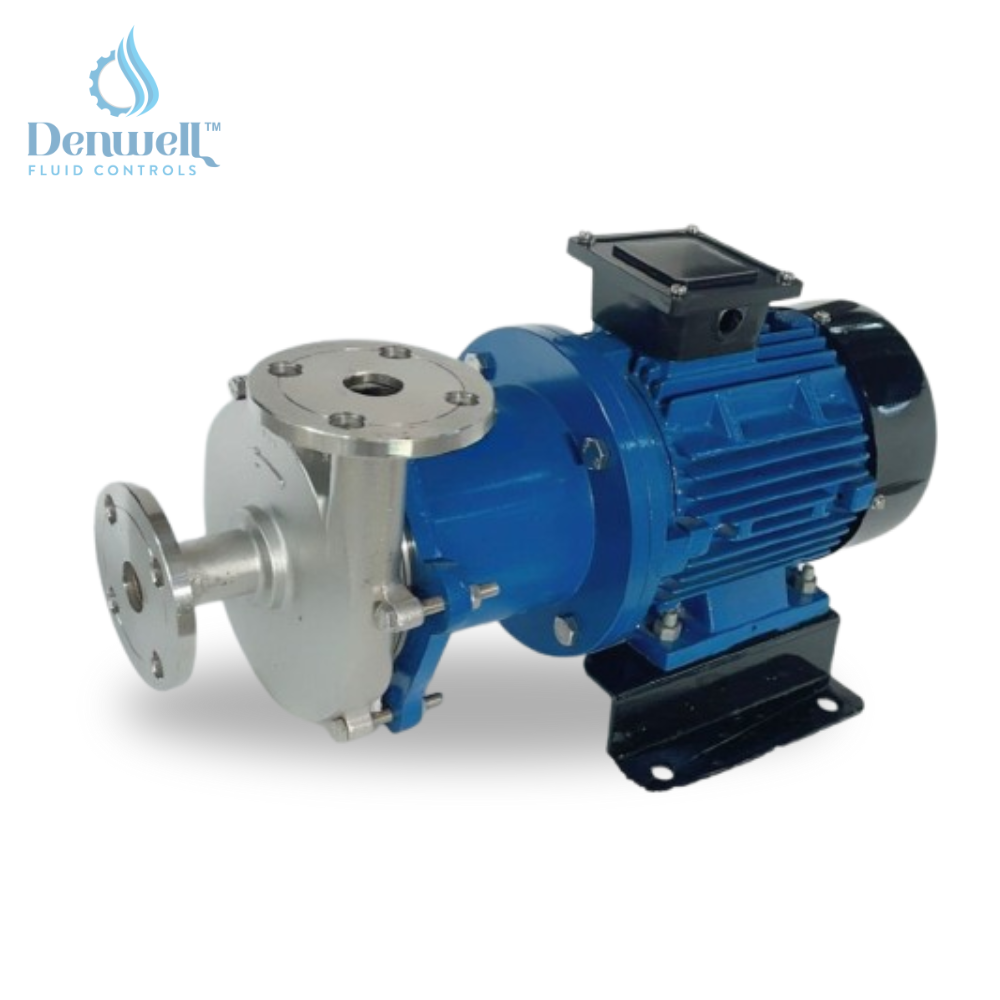

Stainless Steel Magnetic Drive Pump for Acid & Alkali Transfer

Our Stainless Steel Magnetic Drive Pumps are specially engineered for safe and efficient handling of corrosive, flammable, and high-purity fluids. Built using premium-grade stainless steel such as SS-304 and SS-316, these pumps are designed to offer exceptional chemical resistance and long operational life in demanding industrial environments.

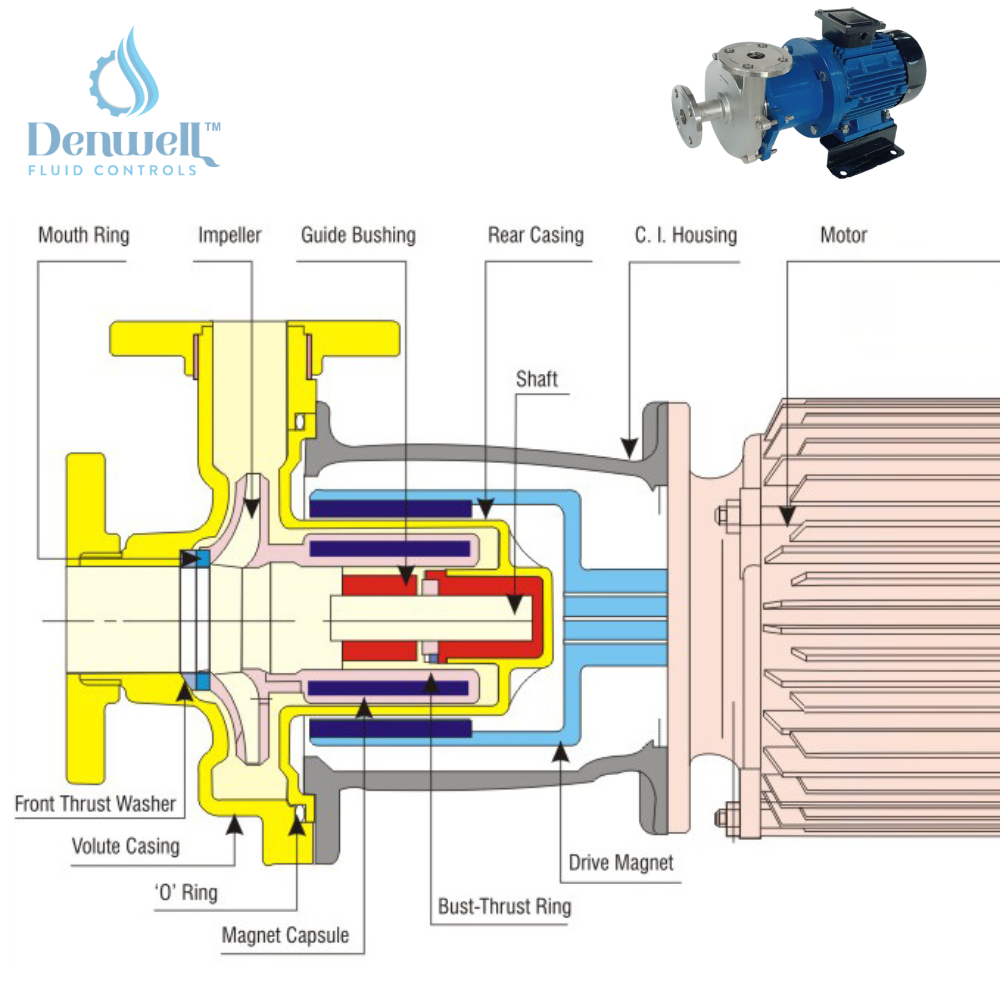

The pump operates on a magnetic coupling principle, eliminating the need for traditional shaft seals. This results in a completely leak-proof and maintenance-friendly design, making it ideal for applications where zero contamination and safety are critical. The powerful rare-earth magnets used in the magnetic coupling ensure high torque transmission, strong magnetism, and resistance to demagnetization, even at elevated temperatures.

Key Features:

Leak-Free Operation: Seal-less design prevents leakage, ensuring safe handling of hazardous or valuable fluids.
High Chemical Compatibility: Suitable for transferring acids, alkalis, alcohols, organic solvents, and more.
Durable Construction: Wetted parts made from SS-304 or SS-316 for superior corrosion resistance.
Energy Efficient: High operating efficiency reduces power consumption and operating costs.
Low Noise & Vibration: Smooth and quiet performance with minimal mechanical wear.
Wide Temperature Range: Reliable operation across a broad spectrum of process temperatures.
Low Maintenance: No mechanical seals to replace; reduced downtime and maintenance cost.

Applications:

Chemical & Petrochemical Industries
Acid and Alkali Manufacturing
Pharmaceuticals & Healthcare
Pesticides & Agrochemicals
Dyes & Pigments
Paper & Pulp Processing
Water & Wastewater Treatment
Solvent Recovery Systems

These SS Magnetic Drive Pumps are an excellent alternative to imported models, offering robust performance, cost-effectiveness, and ease of availability within India.

Advanced Sealless Magnetic Drive Technology

Designed with a robust magnetic coupling, this pump eliminates shaft seals, ensuring leak-free operation and reducing environmental risks. Its sealless construction is ideal for handling corrosive or hazardous fluids safely in demanding industrial settings, lowering maintenance demands and enhancing operator safety.

Durable & Corrosion-Resistant Construction

Crafted from premium stainless steel (SS 304 / 316), the pump offers excellent corrosion resistance for extended use with a wide variety of aggressive chemicals. Its heavy-duty, maintenance-free bearings contribute to reliable, long-term operation even under continuous duty cycles and challenging conditions.

Versatile Application Capabilities

The SS Magnetic Drive Pump is suitable for chemical processing, pharmaceuticals, water treatment, and petrochemical transfers. With capacities up to 6 m3/hr, pressure handling up to 16 bar, and compatibility with both threaded and flanged connections, it integrates seamlessly into diverse industrial processes.

FAQ's of Ss Magnetic Drive Pump:

Q: How does the magnetic drive design of this pump benefit users?

A: The magnetic drive technology eliminates the need for traditional shaft seals, offering completely leak-free operation. This safety feature minimizes the risk of hazardous fluid leakage, provides long-term reliability, and significantly reduces maintenance and downtime.

Q: What types of liquids can be transferred using this pump?

A: This pump is suitable for clear, non-particulate corrosive liquids with viscosities up to 200 cP and densities up to 1.8 g/cm3. It is ideal for use in chemical, pharmaceutical, petrochemical, and water treatment applications where clean fluid transfer is required.

Q: When should this pump be used for fluid transfer?

A: The SS Magnetic Drive Pump is best used when handling corrosive, hazardous, or high-purity liquids that require leak-free operation. It is especially useful in settings where contamination or environmental leakage is a critical concern.

Q: Where can this pump be installed within an industrial process?

A: Due to its baseplate-mounted design and versatile connection options (threaded or flanged), the pump can be seamlessly integrated into a variety of process pipelines. Its compact form and air-cooled motor make it suitable for installation in chemical plants, pharmaceutical production facilities, and water treatment systems across India.

Q: What is the process for maintaining the SS Magnetic Drive Pump?

A: Thanks to its sealless and maintenance-free bearing design, the pump requires very minimal upkeep. Regular inspection for fluid compatibility and occasional cleaning are usually sufficient, making it a low-maintenance option for continuous industrial usage.

Q: How does this pump handle high-pressure and demanding environments?

A: The pump is built from SS 304/316 and designed to handle working pressures up to 16 bar and moderate temperatures from -20C to 100C. It maintains robust performance in industrial environments that demand reliability, durability, and compliance with CE and ISO 2858 standards.

Q: What are the main benefits of using a magnetic drive centrifugal pump over standard pumps?

A: Key benefits include leak-free performance, reduced maintenance due to absence of seals, high corrosion resistance, quiet operation (<70dB), and adaptability for transferring a range of industrial liquids. This makes it a cost-effective and eco-friendly choice for critical liquid processing tasks.
