Ss 316 Chemical Centrifuge Pump Specification

Flow Rate
Up to 15 m3/hr

Theory
Centrifugal Pump

Material
Stainless Steel 316

Structure
Single Stage

Suction Type
Single Suction

Volute Type
Single Volute

Nozzle Location
End/Top

Shaft Orientation
Horizontal

Power Source
Electric

Fuel System
Self-Priming

Pressure
Medium Pressure

Temperature
Up to 100C

Inlet, Outlet Diameter
40 mm x 32 mm

Speed
2900 RPM

Application
Chemical Process, Pharmaceutical, Food Processing, Textile Dyeing, Water Treatment

Paint/Finish
Matt Finish

Max. Head
30 meters

Pump Casing
SS 316 Precision Cast

Cooling Method
Air Cooled

Shaft Material
SS 316

Impeller Type
Closed

Sealing Type
Mechanical Seal

Motor Power
Up to 3 HP

Connection Type
Flanged

Mounting Type
Foot Mounted

Impeller Material
Stainless Steel 316

Max. Solid Handling Capacity
Up to 6 mm

Ss 316 Chemical Centrifuge Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

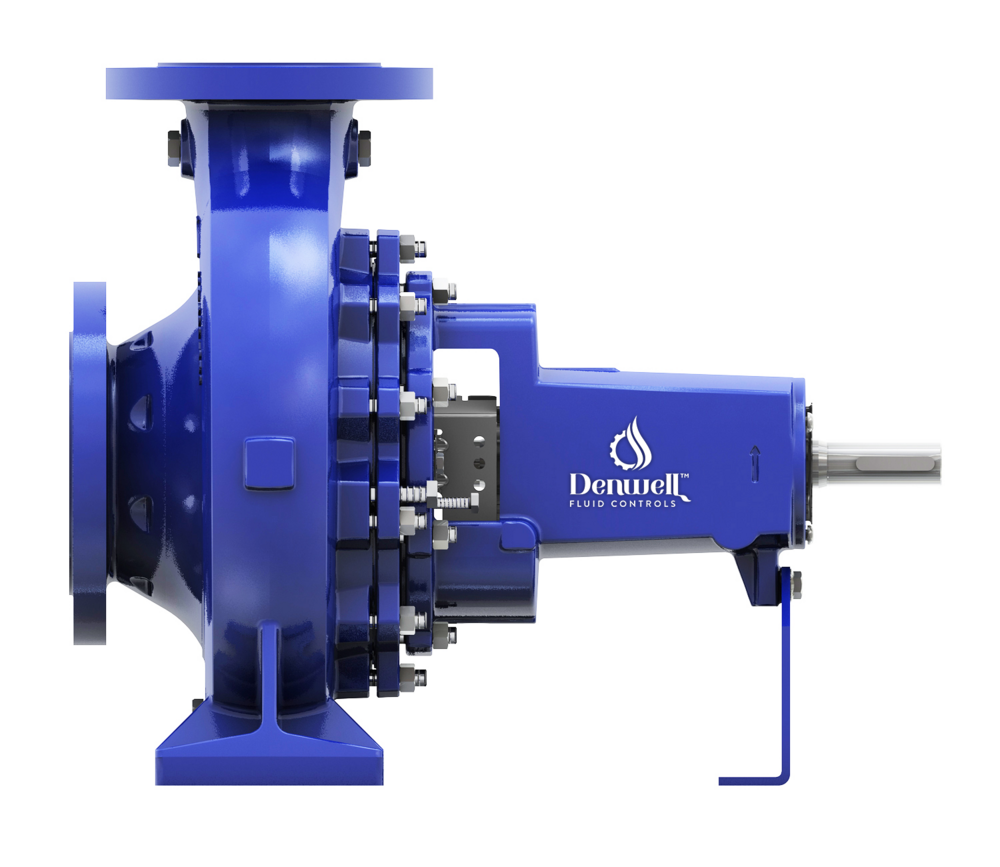

About Ss 316 Chemical Centrifuge Pump

Denwell Pumps is one of the best Centrifugal Pump Manufacturers in Ahmedabad, Gujarat. Our products are acclaimed for their superior quality and comply with industry standards to satisfy clients.

Exceptional Durability with SS 316 Construction

This pump is fabricated using high-grade stainless steel 316, including the casing, impeller, and shaft, offering superior protection against corrosion and wear in rigorous industrial applications. Its matt finish adds to its resilience and long service life, making it ideal for handling aggressive chemical fluids safely and efficiently.

Versatile Application Across Industries

Designed to handle a variety of liquids and operating conditions, the SS 316 Chemical Centrifuge Pump supports chemical processing, pharmaceutical production, food processing, textile dyeing, and water treatment. Its closed impeller design and self-priming capability ensure reliable operation even with slightly contaminated fluids.

Efficient and Reliable Operation

With a foot-mounted, horizontal orientation, the pump offers easy installation and stable performance. It features a mechanically sealed shaft for leak prevention, air-cooled operation, and precision engineering for optimal flow rates up to 15 m3/hr, making it effective for medium-pressure applications.

FAQ's of Ss 316 Chemical Centrifuge Pump:

Q: How does the SS 316 Chemical Centrifuge Pump handle different chemicals safely?

A: The pump is constructed from stainless steel 316, which is highly resistant to corrosion, allowing it to handle a wide range of chemicals and aggressive fluids without degrading, ensuring both safety and durability in chemical processing applications.

Q: What are the main benefits of using a mechanical seal in this pump?

A: A mechanical seal minimizes leakage and provides a secure sealing mechanism even under high-temperature (up to 100C) and medium-pressure conditions, thereby enhancing the pump's reliability and reducing maintenance needs.

Q: Where can this pump be used effectively?

A: The SS 316 Chemical Centrifuge Pump is ideal for chemical process industries, pharmaceutical manufacturing, food-processing plants, textile dyeing units, and water treatment facilities, thanks to its corrosion resistance and capacity to handle diverse fluids and solids up to 6 mm.

Q: When should I choose a closed impeller design?

A: Closed impellers are best suited for clean or slightly contaminated fluids. They offer higher efficiency and stable flow, making this pump ideal when you require consistent performance with limited solid content (up to 6 mm) in the fluid.

Q: What is the installation process for this foot-mounted pump?

A: The pump's foot-mounted design allows for straightforward installation on a flat surface. Secure the unit near your piping system, connect via the flanged inlet (40 mm) and outlet (32 mm), and ensure proper alignment for optimal performance.

Q: How does the air-cooled motor improve pump performance?

A: The air-cooled motor prevents overheating during prolonged operation, maintaining consistent speed (2900 RPM) and performance, which is crucial for applications that demand continuous and reliable throughput.
