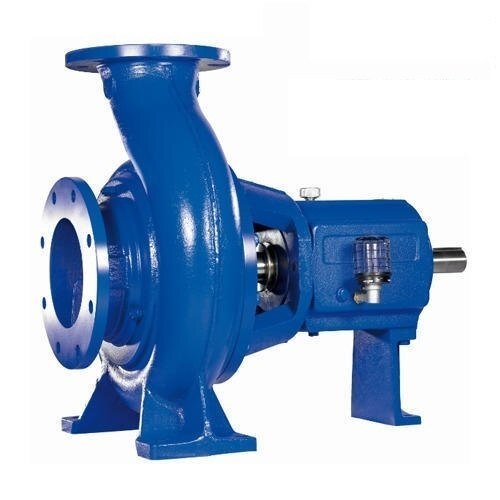

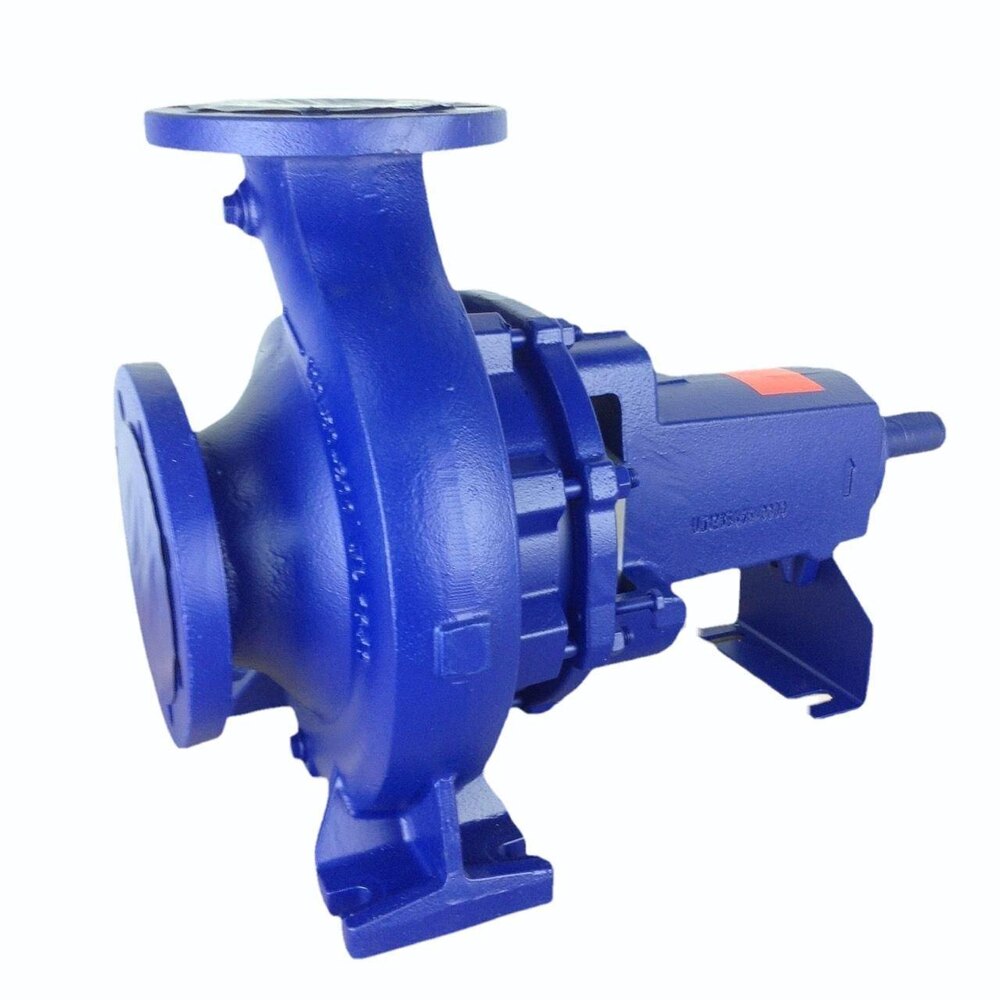

Single-stage centrifugal pumps

Single-stage centrifugal pumps Specification

Theory
Centrifugal Pump

Flow Rate
Up to 1600 m3/h

Material
Cast iron / Stainless steel / Bronze

Structure
Single-stage

Suction Type
Single suction

Volute Type
Single volute

Nozzle Location
End suction

Shaft Orientation
Horizontal

Power Source
Electric motor

Fuel System
Direct coupling

Pressure
Up to 16 bar

Temperature
-10C to 105C

Inlet, Outlet Diameter
DN 32 mm to DN 300 mm

Speed
1450 rpm, 2900 rpm

Application
Water supply, irrigation, HVAC, fire protection, circulation systems, industrial processes

Impeller Type
Closed impeller

Discharge Flange Pressure Rating
PN 16

Mounting Position
Base-mounted

Environment Suitability
Suitable for clean or slightly contaminated liquids

Max Suction Lift
Up to 7 m (with foot valve)

Direction of Rotation
Clockwise (viewed from coupling end)

Seal Type
Mechanical seal or gland packing

Suction Flange Pressure Rating
PN 16

Bearing Type
Heavy-duty ball bearing

Single-stage centrifugal pumps Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Single-stage centrifugal pumps

Denwell Pumps is one of the best Centrifugal Pump Manufacturers in Ahmedabad, Gujarat. Our products are acclaimed for their superior quality and comply with industry standards to satisfy clients.

Efficient and Reliable Pumping Solutions

Engineered for versatility, these base-mounted single-stage centrifugal pumps are tailored for a broad spectrum of fluid management needs. Their closed impeller design, paired with heavy-duty bearings and precision sealing, ensures operational reliability in diverse applications, including water supply, HVAC, fire protection, and industrial processes.

Built to Endure Demanding Conditions

Constructed from high-strength materials like cast iron, stainless steel, or bronze, these pumps withstand rigorous use and variable environments. Capable of handling temperatures from -10C to 105C and pressures up to 16 bar, they are perfectly suited for consistent performance in commercial and industrial settings.

Flexible and Simple Installation

With a user-friendly base-mounted design and end-suction nozzle configuration, installation and maintenance are straightforward. The electric motor with direct coupling enhances energy efficiency and simplifies operation for dealers, exporters, suppliers, and facility managers alike throughout India.

FAQ's of Single-stage centrifugal pumps:

Q: How does the closed impeller design benefit centrifugal pump performance?

A: The closed impeller provides superior hydraulic efficiency and minimizes leakage, making the pump suitable for transferring clean or slightly contaminated liquids with consistent performance over time.

Q: What are the best applications for these single-stage centrifugal pumps?

A: These pumps are well-suited for water supply, irrigation systems, HVAC, fire protection, circulation, and various industrial processes that require reliable fluid movement and pressure handling.

Q: When should one choose mechanical seal versus gland packing?

A: Mechanical seals are ideal for applications requiring minimal leakage and reduced maintenance, while gland packing is often chosen for its cost-effectiveness in less demanding conditions.

Q: Where can these pumps be installed?

A: These pumps are designed for base-mounted horizontal installation and are widely used in facilities across India, from commercial complexes to industrial plants and irrigation sites.

Q: What is the maximum suction lift capability, and how is it achieved?

A: The pump can achieve a maximum suction lift of up to 7 meters when fitted with a foot valve, ensuring effective priming and operation even when the pump is positioned above the fluid source.

Q: How do heavy-duty ball bearings improve pump longevity?

A: Heavy-duty ball bearings provide stable support to the rotating shaft, reducing wear and extending service life even during continuous, high-demand operation.

Q: What materials are available for construction and why choose each?

A: The pumps are offered in cast iron for general use, stainless steel for corrosion resistance, and bronze for compatibility with certain slightly contaminated or seawater applications.
