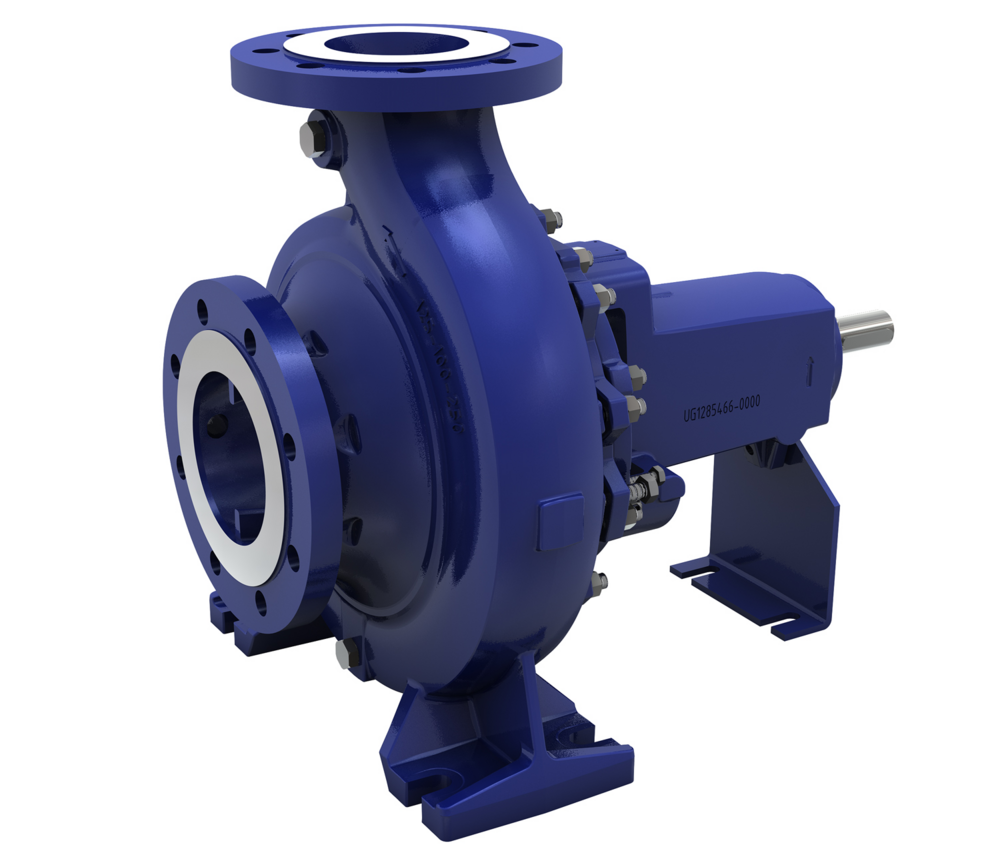

Horizontal Centrifugal Pump

Horizontal Centrifugal Pump Specification

Theory
Centrifugal Pump

Flow Rate
Up to 800 m3/h

Material
Cast Iron/SS 304/SS 316

Structure
Single-stage

Suction Type
Single Suction

Volute Type
Single Volute

Nozzle Location
End Suction

Shaft Orientation
Horizontal

Power Source
Electric Motor

Pressure
Up to 16 bar

Temperature
-10C to 120C

Inlet, Outlet Diameter
Inlet: 50-200 mm, Outlet: 32-150 mm

Speed
1450/2900 rpm

Application
Water supply, Industrial use, HVAC, Fire-fighting, Irrigation

Impeller Type
Closed/ Semi-Open

Direction of Rotation
Clockwise (Viewed from Drive End)

Noise Level
Below 75 dB(A)

Protection Class
IP55

Motor Power Range
1 HP to 100 HP

Seal Type
Mechanical Seal/Gland Packing

Maximum Suction Lift
Up to 7 meters

Coupling
Flexible Coupling

Conformity Standards
ISO 2858/ISO 5199

Insulation Class
F/Class H

Mounting
Baseplate Mounted

Color/Finish
Blue, Corrosion Resistant Paint

Bearing Type
Heavy Duty Ball Bearing

Horizontal Centrifugal Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Horizontal Centrifugal Pump

Denwell Pumps is one of the best Centrifugal Pump Manufacturers in Ahmedabad, Gujarat. Our products are acclaimed for their superior quality and comply with industry standards to satisfy clients.

Efficient & Reliable Operation

With a closed or semi-open impeller and heavy duty ball bearings, this pump delivers steady performance across demanding operations. Its design adheres to stringent ISO standards, ensuring optimal efficiency, reduced vibration, and superior mechanical reliability in your facility.

Versatile Applications & Robust Build

Engineered for diverse uses in water supply, industry, irrigation, and fire-fighting, these pumps are constructed from cast iron or stainless steel (SS 304/316) with durable corrosion-resistant coating. Their broad motor power range and strong structure provide flexibility and extended lifespan.

Easy Installation & Maintenance

Baseplate mounting and flexible coupling simplify installation and service tasks. The inclusion of both mechanical seal and gland packing options allows users to select their preferred sealing method, facilitating straightforward maintenance and operational adaptability.

FAQ's of Horizontal Centrifugal Pump:

Q: How is the Horizontal Centrifugal Pump installed and aligned?

A: The pump is baseplate mounted, enabling secure installation. Alignment with a flexible coupling ensures smooth transmission of power from the electric motor, reducing vibration and protecting bearings. Follow the manufacturer's guidelines during setup for precise coupling alignment and optimal longevity.

Q: What types of impellers and sealing options are available for this pump?

A: This pump can be fitted with either a closed or semi-open impeller, catering to varying application needs. For sealing, users can choose between mechanical seal or gland packing, enabling customization based on fluid type and operating environment.

Q: When should I use gland packing versus a mechanical seal?

A: Gland packing is suitable for handling water or fluids with moderate particulate content at lower pressures, while mechanical seals are preferred for high-pressure, high-temperature, or corrosive applications for superior leakage prevention and reduced maintenance.

Q: Where can this pump be effectively used?

A: It serves multiple sectors, including water supply systems, industrial processing, HVAC, fire-fighting networks, and irrigation. Its design tolerates diverse conditions and materials, making it suitable for facilities requiring reliable, continuous fluid transfer.

Q: What are the benefits of the corrosion-resistant blue finish and ISO compliance?

A: The corrosion-resistant coating enhances durability in harsh environments, reducing maintenance costs. Compliance with ISO 2858 and ISO 5199 provides assurance of international quality, dimensional consistency, and interchangeability for global operations.

Q: How does the pump handle varying temperatures and flow rates?

A: Constructed from robust cast iron or stainless steel, it manages fluids from -10C to 120C and delivers flow rates up to 800 m3/h. The single-stage, single volute design optimizes performance across these ranges without compromising operational safety or efficiency.
